100mm 4"x2" Heavy Duty Phenolic Swivel Caster for moving platforms

Phenolic resin wheel swivel caster, housing and plate steel-welded, bright zinc plated, blue passivated, double steel ball raceway, threaded king pin and nut be riveting rushed secured, grease nipple, wheel axle with nut, plate fitting. Wheel made of high temperature phenolic wheel, vulcanized, roller bearing
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • 600PS-100050R-06

  • WANDA

Overview

600 series, phenolic resin wheel swivel caster, housing and plate steel-welded, bright zinc plated, blue passivated, double steel ball raceway, threaded king pin and nut be riveting rushed secured, grease nipple, wheel axle with nut, plate fitting. Wheel made of high temperature phenolic wheel, vulcanized, roller bearing

Product Description

Technical Date

Wheel Diameter

100 mm

Width of Tread

50 mm

Wheel Color

Black

Wheel Material

Phenolic Resin

Fastening Type

Top Plate

Surface Finish

Bright Zinc

Rotation Type:

Swivel Caster

Load Capacity:

320 kg

Overall Height:

141 mm

Wheel Bearing

Roller Bearing (Ball Bearing is available)

Plate Size

115x100 mm

Plate Hole Space

92x75/75x67 mm

Plate Hole Size

11 mm

Threaded Size

N/A

Stem Long

N/A

Place of Origin

China

Brand Name

Wanda

Usage

Wide Usage

Hardness of Tread

Shore D 86

Temperature Range

- 25 / + 280

Related Process

Molding, Stamping, Machining, Welding, Assembling, Packing


Advantages at a glance

Roll performance

l

l

l

l

l


Movement noise

l

l

¡

¡

¡


Attrition

l

l

l

l

l


Corrosion resistance

l

l

l

l

l

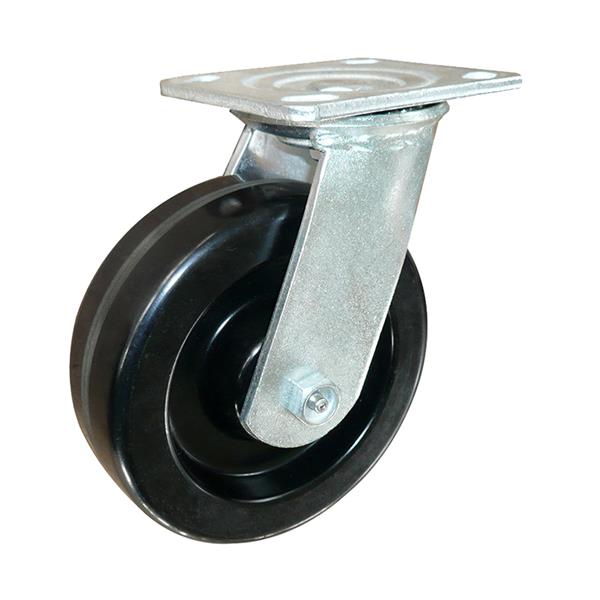

Heavy Duty 6 inch Phenolic Wheel Swivel Caster

Picture may differ from original product

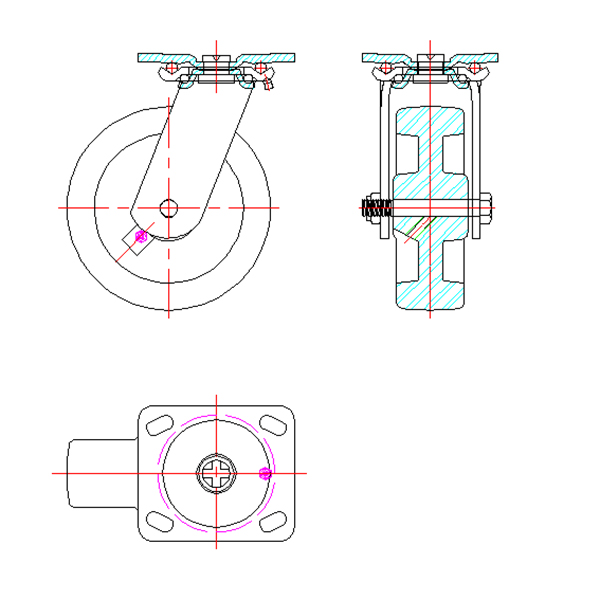

caster drawing

Casters Structure & Mounting

Caster Stucture & Mounting

Casters Structure & Mounting


Optional type and size as below:
Swivel caster

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PS-100050R-06 4 320 100 50 Roller
Bearing
31 141 115x100 92x75/75x67 11
600PS-125050R-06 5 380 125 50 Roller
Bearing
41 163 115x100 92x75/75x67 11
600PS-150050R-06 6 420 150 50 Roller
Bearing
44 189 115X100 92x75/75x67 11
600PS-200050R-06 8 450 200 50 Roller
Bearing
44 239 115x100 92x75/75x67 11

Fixed Caster

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PF-100050R-06 4 320 100 50 Roller
Bearing
/ 141 115x100 92x75/75x67 11
600PF-125050R-06 5 380 125 50 Roller
Bearing
/ 163 115x100 92x75/75x67 11
600PF-150050R-06 6 420 150 50 Roller
Bearing
/ 189 115X100 92x75/75x67 11
600PF-200050R-06 8 450 200 50 Roller
Bearing
/ 239 115x100 92x75/75x67 11

Swivel Caster with tread brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PS-100050R-06-STL 4 320 100 50 Roller
Bearing
31 141 115x100 92x75/75x67 11
600PS-125050R-06-STL 5 380 125 50 Roller
Bearing
41 163 115x100 92x75/75x67 11
600PS-150050R-06-STL 6 420 150 50 Roller
Bearing
44 189 115X100 92x75/75x67 11
600PS-200050R-06-STL 8 450 200 50 Roller
Bearing
44 239 115x100 92x75/75x67 11

Fixed Caster with side brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PF-100050R-06-STL 4 320 100 50 Roller
Bearing
/ 141 115x100 92x75/75x67 11
600PF-125050R-06-STL 5 380 125 50 Roller
Bearing
/ 163 115x100 92x75/75x67 11
600PF-150050R-06-STL 6 420 150 50 Roller
Bearing
/ 189 115X100 92x75/75x67 11
600PF-200050R-06-STL 8 450 200 50 Roller
Bearing
/ 239 115x100 92x75/75x67 11

Swivel Caster with tread brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PS-100050R-06-DUT 4 320 100 50 Roller
Bearing
31 141 115x100 92x75/75x67 11
600PS-125050R-06-DUT 5 380 125 50 Roller
Bearing
41 163 115x100 92x75/75x67 11
600PS-150050R-06-DUT 6 420 150 50 Roller
Bearing
44 189 115X100 92x75/75x67 11
600PS-200050R-06-DUT 8 450 200 50 Roller
Bearing
44 239 115x100 92x75/75x67 11
