12 inch Heavy Duty PU on Iron Swivel Scaffold Caster

CAS12P Series standard top plate scaffold casters are designed for scaffolds 3300lbs to 5000lbs load capacity per caster, features and easy to engage total locks that locks both wheel and swivel and allow easy locking and respositioning. Top plate fitting, zinc swivel caster, housing and plate steel-welded, bright zinc plated, double steel ball raceway, threaded king pin and nut be riveting rushed secured or weled, grease nipple, wheel axle choose 8.8 safe bolt. Wheel center made of cast iron, Tread: good quality rubber, durable ball bearings.
Availability:
Quantity:
  • CAS12P-300075B-12
  • WANDA

Overview

Standard top plate scaffold casters CAS12P Series are designed for scaffolds 3300lbs to 5000lbs load capacity per caster, features and easy to engage total locks that locks both wheel and swivel and allow easy locking and respositioning. Top plate fitting, zinc swivel caster, housing and plate steel-welded, bright zinc plated, double steel ball raceway, threaded king pin and nut be riveting rushed secured or weled, grease nipple, wheel axle choose 8.8 safe bolt. Wheel center made of cast iron, Tread: good quality rubber, durable ball bearings.

Product Description

Technical Date

Wheel Diameter

300 mm

Width of Tread

75 mm

Wheel Color

Red

Wheel Material

Good Quality Polyurethane

Fastening Type

Top Plate

Surface Finish

Bright Zinc

Rotation Type

Swivel Caster with total lock

Load Capacity:

1500 kg

Overall Height:

369 mm

Wheel Bearing

Ball Bearing

Plate Size

170x127 mm

Plate Hole Space

136x93.5/125x63.5 mm

Plate Hole Size

14 mm

Threaded Size

N/A

Stem Long

N/A

Place of Origin

China

Brand Name

Wanda

Usage

Wide Usage

Hardness of Tread

Shore A 80

Temperature Range

- 15 / + 80

Related Process

Molding, Stamping, Machining, Welding, Assembling, Packing


Advantages at a glance

Roll performance

l

l

l

l

l


Movement noise

l

l

l

l

¡


Attrition

l

l

l

l

l


Corrosion resistance

l

l

l

l

¡

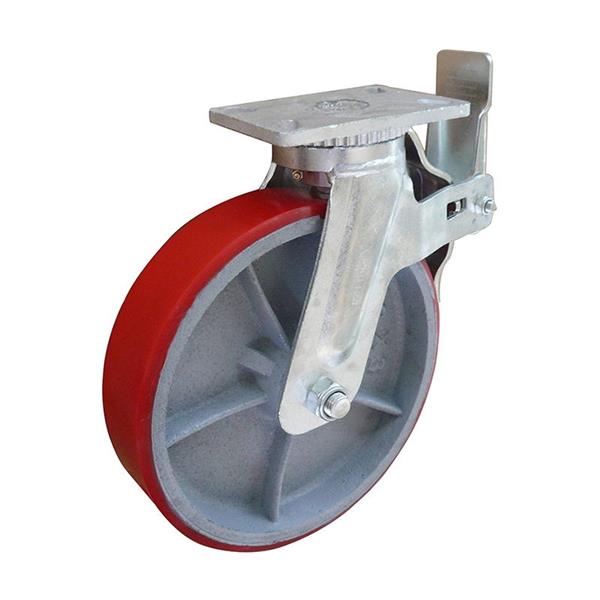

12 inch PU Scaffold Caster

Picture may differ from original product

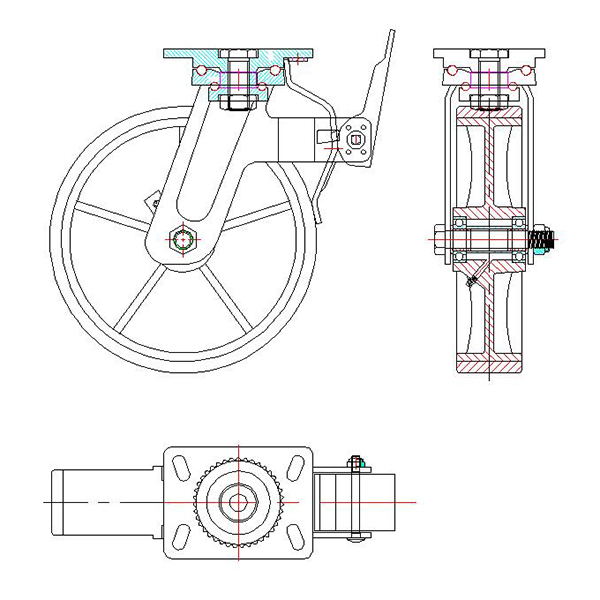

12 inch scaffold swivel caster drawing(1)

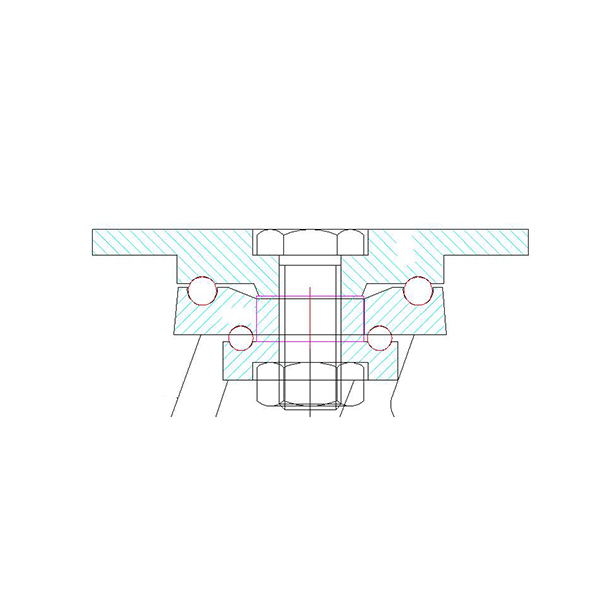

Casters Stucture & Mounting

12 inch scaffold swivel caster Stucture & Mounting

Casters Stucture & Mounting

Production Process

Casters Production Process

Strictly Quality Inspection
Strictly Quality Inspection
Certifications

Certifications
