600PS-150050R-01
WANDA
Overview

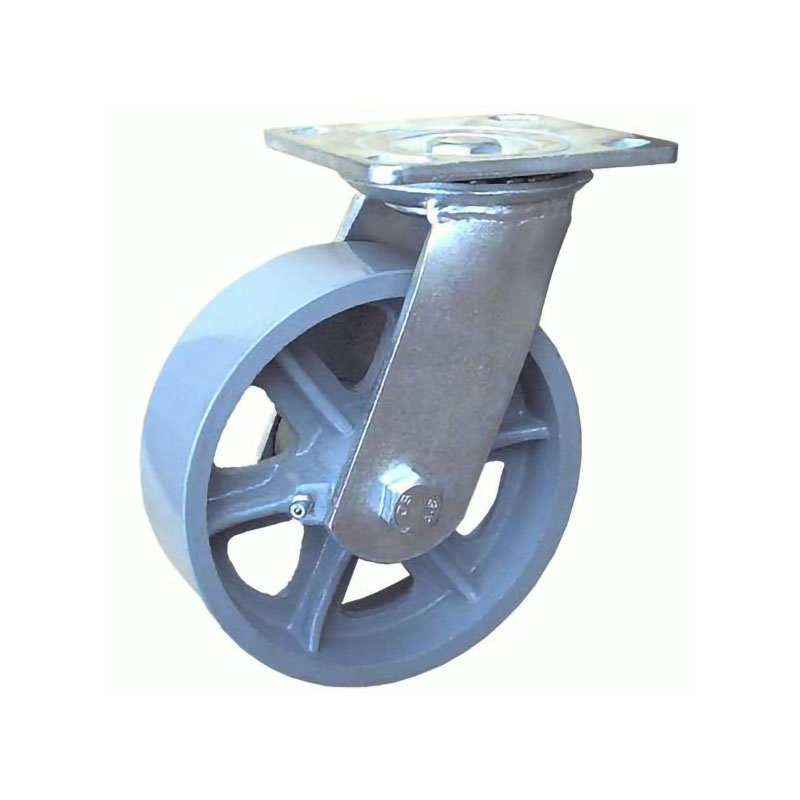

150mm Wanda 6"x2" cast iron and semi steel wheels casters are made of incredibly strong steel that is highly resistant to abuse and tough environments. Cast Iron wheels are able to withstand high temperatures and can be exposed to water and/or other abusive factors in challenging environments. They can withstand exposure to chemicals, grease and oil. However, one downside is that Cast Iron wheels will rust over time if exposed to fluids and chemicals regularly. High Load Capacities (Up to thousands of lbs depending on wheel size), High Heat Resistance (-45F to +500F), Resistance to liquids and chemicals, Multiple styles of bearings available
Technical Date | |
Wheel Diameter | 150 mm |
Width of Tread | 50 mm |
Wheel Color | Black, Silver, Gray |
Wheel Material | Grey Cast Iron |
Fastening Type | Top Plate |
Surface Finish | Bright Zinc |
Rotation Type: | Swivel Caster |
Load Capacity: | 400 kg |
Overall Height: | 189 mm |
Wheel Bearing | Roller Bearing (Ball Bearing is available) |
Plate Size | 115x100 mm |
Plate Hole Space | 92x75/75x67 mm |
Plate Hole Size | 11 mm |
Threaded Size | N/A |
Stem Long | N/A |
Place of Origin | China |
Brand Name | Wanda |
Usage | Wide Usage |
Hardness of Tread | HB220 |
Temperature Range | Up to 420℃ |
Related Process | Casting, Stamping, Machining, Welding, Assembling, Packing |
Advantages at a glance | ||||||
Roll performance | l | l | l | l | l | |
Movement noise | l | l | ¡ | ¡ | ¡ | |
Attrition | l | l | l | l | l | |
Corrosion resistance | l | l | l | l | l |
Picture may differ from original product
Casters Structure & Mounting
Casters Structure & Mounting
Optional type and size as below:
Swivel caster
ITEM NO. | SPEC (INCH) | CAPACITY (KG) | DIA (MM) | WIDTH (MM) | WHEEL BEARING | SWIVEL RADIUS (MM) | OVERALL HEIGHT (MM) | TOP PLATE (MM) | HOLE CENTERS (MM) | PLATE HOLE (MM) |
600PS-100050R-01 | 4 | 320 | 100 | 50 | Roller Bearing | 31 | 141 | 115x100 | 92x75/75x67 | 11 |
600PS-125050R-01 | 5 | 380 | 125 | 50 | Roller Bearing | 41 | 163 | 115x100 | 92x75/75x67 | 11 |
600PS-150050R-01 | 6 | 420 | 150 | 50 | Roller Bearing | 44 | 189 | 115X100 | 92x75/75x67 | 11 |
600PS-200050R-01 | 8 | 450 | 200 | 50 | Roller Bearing | 44 | 239 | 115x100 | 92x75/75x67 | 11 |
Fixed Caster
ITEM NO. | SPEC (INCH) | CAPACITY (KG) | DIA (MM) | WIDTH (MM) | WHEEL BEARING | SWIVEL RADIUS (MM) | OVERALL HEIGHT (MM) | TOP PLATE (MM) | HOLE CENTERS (MM) | PLATE HOLE (MM) |
600PF-100050R-01 | 4 | 320 | 100 | 50 | Roller Bearing | / | 141 | 115x100 | 92x75/75x67 | 11 |
600PF-125050R-01 | 5 | 380 | 125 | 50 | Roller Bearing | / | 163 | 115x100 | 92x75/75x67 | 11 |
600PF-150050R-01 | 6 | 420 | 150 | 50 | Roller Bearing | / | 189 | 115X100 | 92x75/75x67 | 11 |
600PF-200050R-01 | 8 | 450 | 200 | 50 | Roller Bearing | / | 239 | 115x100 | 92x75/75x67 | 11 |
Swivel Caster with tread brake
ITEM NO. | SPEC (INCH) | CAPACITY (KG) | DIA (MM) | WIDTH (MM) | WHEEL BEARING | SWIVEL RADIUS (MM) | OVERALL HEIGHT (MM) | TOP PLATE (MM) | HOLE CENTERS (MM) | PLATE HOLE (MM) |
600PS-100050R-01-STL | 4 | 320 | 100 | 50 | Roller Bearing | 31 | 141 | 115x100 | 92x75/75x67 | 11 |
600PS-125050R-01-STL | 5 | 380 | 125 | 50 | Roller Bearing | 41 | 163 | 115x100 | 92x75/75x67 | 11 |
600PS-150050R-01-STL | 6 | 420 | 150 | 50 | Roller Bearing | 44 | 189 | 115X100 | 92x75/75x67 | 11 |
600PS-200050R-01-STL | 8 | 450 | 200 | 50 | Roller Bearing | 44 | 239 | 115x100 | 92x75/75x67 | 11 |
Fixed Caster with side brake
ITEM NO. | SPEC (INCH) | CAPACITY (KG) | DIA (MM) | WIDTH (MM) | WHEEL BEARING | SWIVEL RADIUS (MM) | OVERALL HEIGHT (MM) | TOP PLATE (MM) | HOLE CENTERS (MM) | PLATE HOLE (MM) |
600PF-100050R-01-STL | 4 | 320 | 100 | 50 | Roller Bearing | / | 141 | 115x100 | 92x75/75x67 | 11 |
600PF-125050R-01-STL | 5 | 380 | 125 | 50 | Roller Bearing | / | 163 | 115x100 | 92x75/75x67 | 11 |
600PF-150050R-01-STL | 6 | 420 | 150 | 50 | Roller Bearing | / | 189 | 115X100 | 92x75/75x67 | 11 |
600PF-200050R-01-STL | 8 | 450 | 200 | 50 | Roller Bearing | / | 239 | 115x100 | 92x75/75x67 | 11 |
Swivel Caster with tread brake
ITEM NO. | SPEC (INCH) | CAPACITY (KG) | DIA (MM) | WIDTH (MM) | WHEEL BEARING | SWIVEL RADIUS (MM) | OVERALL HEIGHT (MM) | TOP PLATE (MM) | HOLE CENTERS (MM) | PLATE HOLE (MM) |
600PS-100050R-01-DUT | 4 | 320 | 100 | 50 | Roller Bearing | 31 | 141 | 115x100 | 92x75/75x67 | 11 |
600PS-125050R-01-DUT | 5 | 380 | 125 | 50 | Roller Bearing | 41 | 163 | 115x100 | 92x75/75x67 | 11 |
600PS-150050R-01-DUT | 6 | 420 | 150 | 50 | Roller Bearing | 44 | 189 | 115X100 | 92x75/75x67 | 11 |
600PS-200050R-01-DUT | 8 | 450 | 200 | 50 | Roller Bearing | 44 | 239 | 115x100 | 92x75/75x67 | 11 |
Production Process
