Home » Casters » Heavy Duty Casters » 150mm 6"x2" Heavy Duty Rubber on Steel Casters for hand trolley with brakes

150mm 6"x2" Heavy Duty Rubber on Steel Casters for hand trolley with brakes

6"x2" Cast Iron mold on rubber casters are superior to rubber casters with side brake. These caster wheels can be used on almost any factory floor. Given the same size load on a smooth floor, a polyurethane caster wheel rolls easier than the same size conventional rubber caster wheel. Other wheel color avaliable. Straight roller bearing with drilled hardended steel spanner bushing.
Availability:
Quantity:
  • 600PS-100050R-12-STL
  • WANDA

Overview

6"x2" Cast Iron mold on rubber casters are superior to rubber casters in resistance to grease, oil, cutting, chunking, and abrasive wear. These caster wheels can be used on almost any factory floor. Given the same size load on a smooth floor, a polyurethane caster wheel rolls easier than the same size conventional rubber caster wheel. Any wheel color avaliable. Straight roller bearing with drilled hardended steel spanner bushing.

Product Description

Technical Date

Wheel Diameter

150 mm

Width of Tread

50 mm

Wheel Color

Black

Wheel Material

Standard Rubber

Fastening Type

Top Plate

Surface Finish

Bright Zinc

Rotation Type:

Swivel Caster With side brake

Load Capacity:

300 kg

Overall Height:

189 mm

Wheel Bearing

Roller Bearing

Plate Size

115x100 mm

Plate Hole Space

93x75/75x67 mm

Plate Hole Size

11 mm

Threaded Size

N/A

Stem Long

N/A

Place of Origin

China

Brand Name

Wanda

Usage

Wide Usage

Hardness of Tread

Shore A 80

Temperature Range

- 15 / + 60

Related Process

Molding, Stamping, Machining, Welding, Assembling, Packing


Advantages at a glance

Roll performance

l

l

l

l

l


Movement noise

l

l

l

l

l


Attrition

l

l

l

l

l


Corrosion resistance

l

l

l

l

¡

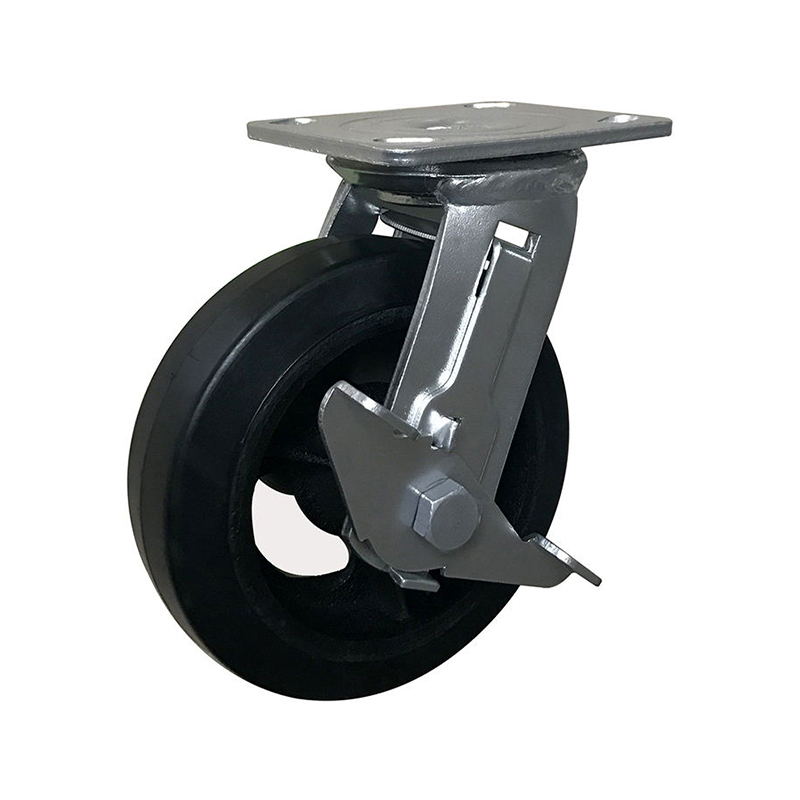

6 inch rubber wheel swivel caster with sde brake

Picture may differ from original product

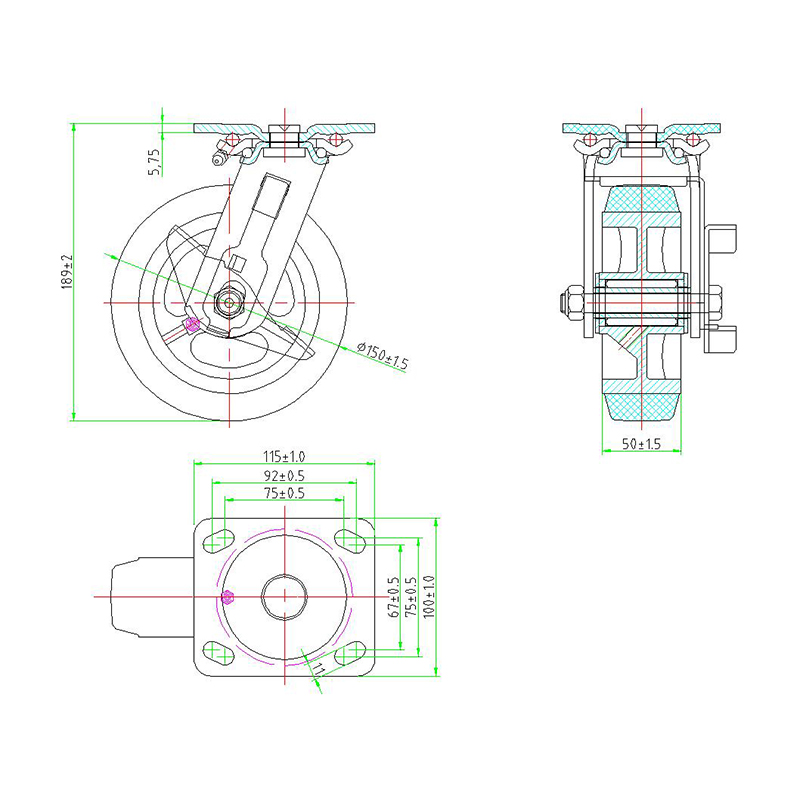

Drawing-6x2 Rubber on Iron Swivel Caster With side brake

Casters Structure & Mounting

Drawing-6x2 PU on Iron Swivel Caster

Casters Structure & Mounting

Optional type and size as below:
Swivel caster

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PS-100050R-12 4 250 100 50 Roller
Bearing
31 141 115x100 92x75/75x67 11
600PS-125050R-12 5 280 125 50 Roller
Bearing
41 163 115x100 92x75/75x67 11
600PS-150050R-12 6 300 150 50 Roller
Bearing
44 189 115X100 92x75/75x67 11
600PS-200050R-12 8 400 200 50 Roller
Bearing
44 239 115x100 92x75/75x67 11

Fixed Caster

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PF-100050R-12 4 250 100 50 Roller
Bearing
/ 141 115x100 92x75/75x67 11
600PF-125050R-12 5 280 125 50 Roller
Bearing
/ 163 115x100 92x75/75x67 11
600PF-150050R-12 6 300 150 50 Roller
Bearing
/ 189 115X100 92x75/75x67 11
600PF-200050R-12 8 400 200 50 Roller
Bearing
/ 239 115x100 92x75/75x67 11

Swivel Caster with tread brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PS-100050R-12-STL 4 250 100 50 Roller
Bearing
31 141 115x100 92x75/75x67 11
600PS-125050R-12-STL 5 280 125 50 Roller
Bearing
41 163 115x100 92x75/75x67 11
600PS-150050R-12-STL 6 300 150 50 Roller
Bearing
44 189 115X100 92x75/75x67 11
600PS-200050R-12-STL 8 400 200 50 Roller
Bearing
44 239 115x100 92x75/75x67 11

Fixed Caster with side brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PF-100050R-12-STL 4 250 100 50 Roller
Bearing
/ 141 115x100 92x75/75x67 11
600PF-125050R-12-STL 5 280 125 50 Roller
Bearing
/ 163 115x100 92x75/75x67 11
600PF-150050R-12-STL 6 300 150 50 Roller
Bearing
/ 189 115X100 92x75/75x67 11
600PF-200050R-12-STL 8 400 200 50 Roller
Bearing
/ 239 115x100 92x75/75x67 11

Swivel Caster with tread brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PS-100050R-12-DUT 4 250 100 50 Roller
Bearing
31 141 115x100 92x75/75x67 11
600PS-125050R-12-DUT 5 280 125 50 Roller
Bearing
41 163 115x100 92x75/75x67 11
600PS-150050R-12-DUT 6 300 150 50 Roller
Bearing
44 189 115X100 92x75/75x67 11
600PS-200050R-12-DUT 8 400 200 50 Roller
Bearing
44 239 115x100 92x75/75x67 11



Production Process

Casters Production Process

Strictly Quality Inspection
Strictly Quality Inspection


Certifications

Certifications
