1T/2T 250mm Super Heavy Duty Swivel PU Casters with Brake

10 Inch Super Heavy Duty Polyurethane on Cast Iron Wheel Swivel Casters with Tread Lock, when performance and endurance are key concerns, the high performance castor is world class, with a large opposed taper roller bearing in the swivel head, the castor can be power towed at up to 12kph over flat surfaces withourt opstructions, the steel passivated zinc plated frame is robot welded and the fully sealed greasable swivel head makes and easily maintainable and smooth running swivel, custom designed and manufactured in-house to specification.
Availability:
Quantity:

Overview

When performance and endurance are key concerns, 10 Inch Super Heavy Duty Polyurethane on Cast Iron Wheel Swivel Casters with Tread Lock, the high performance castor is world class, with a large opposed taper roller bearing in the swivel head, the castor can be power towed at up to 12kph over flat surfaces withourt opstructions, the steel passivated zinc plated frame is robot welded and the fully sealed greasable swivel head makes and easily maintainable and smooth running swivel, custom designed and manufactured in-house to specification.

Product Description

Technical Date

Wheel Diameter

250 mm

Width of Tread

75 mm

Wheel Color

Red

Wheel Material

Polyurethane on Iron

Fastening Type

Top Plate

Surface Finish

Bright Yellow Zinc

Rotation Type:

Swivel Caster

Load Capacity:

2000 kg

Overall Height:

310 mm

Wheel Bearing

Ball Bearing

Plate Size

200x160 mm

Plate Hole Space

160x120 mm

Plate Hole Size

16 mm

Threaded Size

N/A

Stem Long

N/A

Place of Origin

China

Brand Name

Wanda

Usage

Wide Usage

Hardness of Tread

Shore A 95

Temperature Range

- 15 / + 60

Related Process

Molding, Stamping, Machining, Welding, Assembling, Packing


Advantages at a glance

Roll performance

l

l

l

l

l


Movement noise

l

l

l

l

¡


Attrition

l

l

l

l

l


Corrosion resistance

l

l

l

l

¡

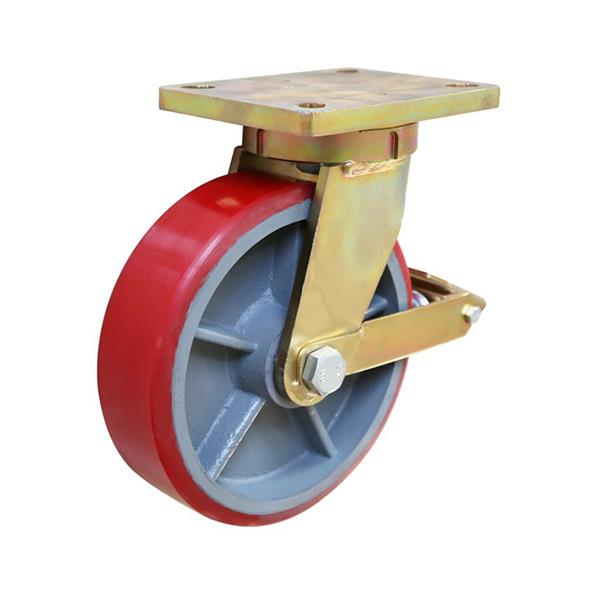

1T Super Heavy Duty Swivel Caster

Picture may differ from original product

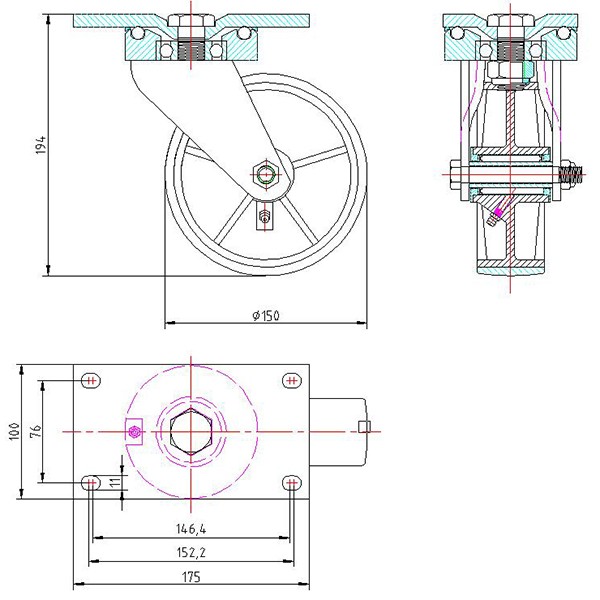

Heavy Duty Caster Drawing

Casters Structure & Mounting

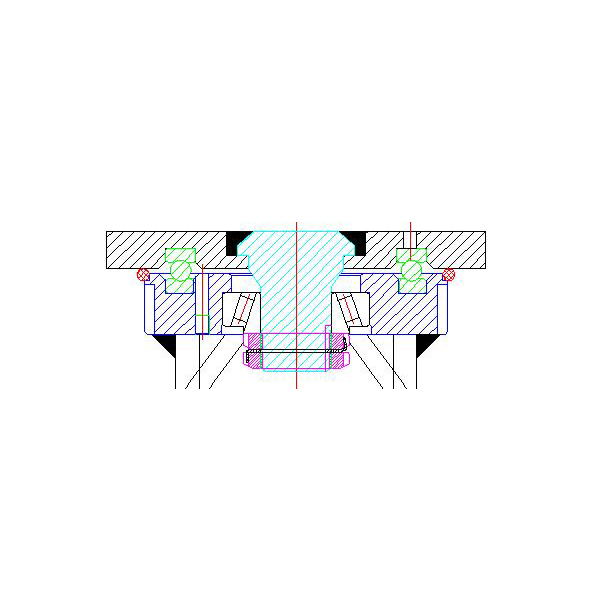

Extra Heavy Duty swivel caster Stucture & Mounting

Casters Structure & Mounting

Optional type and size as below:
Swivel caster

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
3000PS-200075B-13 8 1800 200 75 Ball
Bearing
72 260 200x160 160x120 16
3000PS-250075B-13 10 2000 250 75 Ball
Bearing
85 310 200x160 160x120 16
3000PS-300075B-13 12 2500 300 75 Ball
Bearing
90 364 200x160 160x120 16

Fixed Caster

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
3000PF-200075B-13 8 1800 200 75 Ball
Bearing
/ 260 200x160 160x120 16
3000PF-250075B-13 10 2000 250 75 Ball
Bearing
/ 310 200x160 160x120 16
3000PF-300075B-13 12 2500 300 75 Ball
Bearing
/ 364 200x160 160x120 16

Swivel Caster with tread brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
3000PS-200075B-13-BL 8 1800 200 75 Ball
Bearing
72 260 200x160 160x120 16
3000PS-250075B-13-BL 10 2000 250 75 Ball
Bearing
85 310 200x160 160x120 16
3000PS-300075B-13-BL 12 2500 300 75 Ball
Bearing
90 364 200x160 160x120 16



Production Process

Casters Production Process

Strictly Quality Inspection
Strictly Quality Inspection


Certifications

Certifications
