600PS-125050R-13-DUC
WANDA
Overview

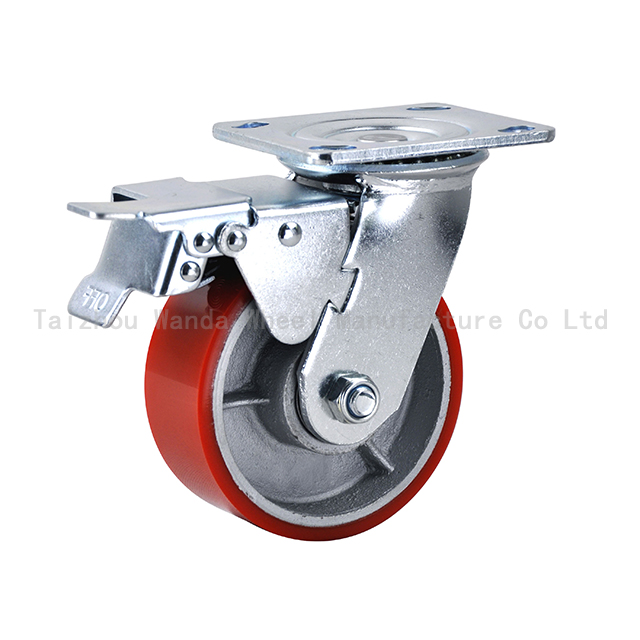

5"x2" PU on Iron asters are superior to PU casters in resistance to grease, oil, cutting, chunking, and abrasive wear. These caster wheels can be used on almost any factory floor. Given the same size load on a smooth floor, a polyurethane caster wheel rolls easier than the same size conventional rubber caster wheel. Any wheel color avaliable. Straight roller bearing with drilled hardended steel spanner bushing.
Technical Date | |
Wheel Diameter | 125 mm |
Width of Tread | 50 mm |
Wheel Color | Red |
Wheel Material | Good Quality Polyurethane |
Fastening Type | Top Plate |
Surface Finish | Bright Zinc |
Rotation Type: | Swivel Caster with Double Brake |
Load Capacity: | 410 kg |
Overall Height: | 139 mm |
Wheel Bearing | Roller Bearing |
Plate Size | 115x100 mm |
Plate Hole Space | 93x75/75x67 mm |
Plate Hole Size | 11 mm |
Threaded Size | N/A |
Stem Long | N/A |
Place of Origin | China |
Brand Name | Wanda |
Usage | Wide Usage |
Hardness of Tread | Shore A 93 |
Temperature Range | - 15 / + 60 ℃ |
Related Process | Molding, Stamping, Machining, Welding, Assembling, Packing |
Advantages at a glance | ||||||
Roll performance | l | l | l | l | l | |
Movement noise | l | l | l | l | l | |
Attrition | l | l | l | l | l | |
Corrosion resistance | l | l | l | l | ¡ |
Picture may differ from original product
Casters Structure & Mounting
Casters Structure & Mounting
Optional type and size as below:
Swivel caster
ITEM NO. | SPEC (INCH) | CAPACITY (KG) | DIA (MM) | WIDTH (MM) | WHEEL BEARING | SWIVEL RADIUS (MM) | OVERALL HEIGHT (MM) | TOP PLATE (MM) | HOLE CENTERS (MM) | PLATE HOLE (MM) |
600PS-150050R-13 | 4 | 300 | 100 | 50 | Roller Bearing | 31 | 141 | 115x100 | 92x75/75x67 | 11 |
600PS-125050R-13 | 5 | 350 | 125 | 50 | Roller Bearing | 41 | 163 | 115x100 | 92x75/75x67 | 11 |
600PS-150050R-13 | 6 | 400 | 150 | 50 | Roller Bearing | 44 | 189 | 115X100 | 92x75/75x67 | 11 |
600PS-200050R-13 | 8 | 450 | 200 | 50 | Roller Bearing | 44 | 239 | 115x100 | 92x75/75x67 | 11 |
Fixed Caster
ITEM NO. | SPEC (INCH) | CAPACITY (KG) | DIA (MM) | WIDTH (MM) | WHEEL BEARING | SWIVEL RADIUS (MM) | OVERALL HEIGHT (MM) | TOP PLATE (MM) | HOLE CENTERS (MM) | PLATE HOLE (MM) |
600PF-100050R-13 | 4 | 300 | 100 | 50 | Roller Bearing | / | 141 | 115x100 | 92x75/75x67 | 11 |
600PF-125050R-13 | 5 | 350 | 125 | 50 | Roller Bearing | / | 163 | 115x100 | 92x75/75x67 | 11 |
600PF-150050R-13 | 6 | 400 | 150 | 50 | Roller Bearing | / | 189 | 115X100 | 92x75/75x67 | 11 |
600PF-200050R-13 | 8 | 450 | 200 | 50 | Roller Bearing | / | 239 | 115x100 | 92x75/75x67 | 11 |
Swivel Caster with tread brake
ITEM NO. | SPEC (INCH) | CAPACITY (KG) | DIA (MM) | WIDTH (MM) | WHEEL BEARING | SWIVEL RADIUS (MM) | OVERALL HEIGHT (MM) | TOP PLATE (MM) | HOLE CENTERS (MM) | PLATE HOLE (MM) |
600PS-100050R-13-STA | 4 | 300 | 100 | 50 | Roller Bearing | 31 | 141 | 115x100 | 92x75/75x67 | 11 |
600PS-125050R-13-STA | 5 | 350 | 125 | 50 | Roller Bearing | 41 | 163 | 115x100 | 92x75/75x67 | 11 |
600PS-150050R-13-STA | 6 | 400 | 150 | 50 | Roller Bearing | 44 | 189 | 115X100 | 92x75/75x67 | 11 |
600PS-200050R-13-STA | 8 | 450 | 200 | 50 | Roller Bearing | 44 | 239 | 115x100 | 92x75/75x67 | 11 |
Fixed Caster with side brake
ITEM NO. | SPEC (INCH) | CAPACITY (KG) | DIA (MM) | WIDTH (MM) | WHEEL BEARING | SWIVEL RADIUS (MM) | OVERALL HEIGHT (MM) | TOP PLATE (MM) | HOLE CENTERS (MM) | PLATE HOLE (MM) |
600PF-100050R-13-STA | 4 | 300 | 100 | 50 | Roller Bearing | / | 141 | 115x100 | 92x75/75x67 | 11 |
600PF-125050R-13-STA | 5 | 350 | 125 | 50 | Roller Bearing | / | 163 | 115x100 | 92x75/75x67 | 11 |
600PF-150050R-13-STA | 6 | 400 | 150 | 50 | Roller Bearing | / | 189 | 115X100 | 92x75/75x67 | 11 |
600PF-200050R-13-STA | 8 | 450 | 200 | 50 | Roller Bearing | / | 239 | 115x100 | 92x75/75x67 | 11 |
Swivel Caster with tread brake
ITEM NO. | SPEC (INCH) | CAPACITY (KG) | DIA (MM) | WIDTH (MM) | WHEEL BEARING | SWIVEL RADIUS (MM) | OVERALL HEIGHT (MM) | TOP PLATE (MM) | HOLE CENTERS (MM) | PLATE HOLE (MM) |
600PS-100050R-13-DUC | 4 | 300 | 100 | 50 | Roller Bearing | 31 | 141 | 115x100 | 92x75/75x67 | 11 |
600PS-125050R-13-DUC | 5 | 350 | 125 | 50 | Roller Bearing | 41 | 163 | 115x100 | 92x75/75x67 | 11 |
600PS-150050R-13-DUC | 6 | 400 | 150 | 50 | Roller Bearing | 44 | 189 | 115X100 | 92x75/75x67 | 11 |
600PS-200050R-13-DUC | 8 | 450 | 200 | 50 | Roller Bearing | 44 | 239 | 115x100 | 92x75/75x67 | 11 |
