6 inch Medium Duty PP on TPU Swivel Caster for hand trolley with brakes Total lock

PP on TPU 6"x2" swivel casters with brakes Total lock are superior to PU casters in resistance to grease, oil, cutting, chunking, and abrasive wear. These caster wheels can be used on almost any factory floor. Given the same size load on a smooth floor, a polyurethane caster wheel rolls easier than the same size conventional rubber caster wheel. Any wheel color avaliable. Straight roller bearing with drilled hardended steel spanner bushing.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • 600PS-150050R-93-DUA

  • WANDA

Overview

6"x2" PP on TPU casters are superior to PU casters in resistance to grease, oil, cutting, chunking, and abrasive wear. These caster wheels can be used on almost any factory floor. Given the same size load on a smooth floor, a polyurethane caster wheel rolls easier than the same size conventional rubber caster wheel. Any wheel color avaliable. Straight roller bearing with drilled hardended steel spanner bushing.

Product Description

Technical Date

Wheel Diameter

150 mm

Width of Tread

50 mm

Wheel Color

Red Claret

Wheel Material

Good Quality Polyurethane

Fastening Type

Top Plate

Surface Finish

Bright Zinc

Rotation Type:

Swivel Caster With brake

Load Capacity:

360 kg

Overall Height:

163 mm

Wheel Bearing

Roller Bearing

Plate Size

115x100 mm

Plate Hole Space

93x75/75x67 mm

Plate Hole Size

11 mm

Threaded Size

N/A

Stem Long

N/A

Place of Origin

China

Brand Name

Wanda

Usage

Wide Usage

Hardness of Tread

Shore A 93

Temperature Range

- 15 / + 60

Related Process

Molding, Stamping, Machining, Welding, Assembling, Packing


Advantages at a glance

Roll performance

l

l

l

l

l


Movement noise

l

l

l

l

l


Attrition

l

l

l

l

l


Corrosion resistance

l

l

l

l

¡

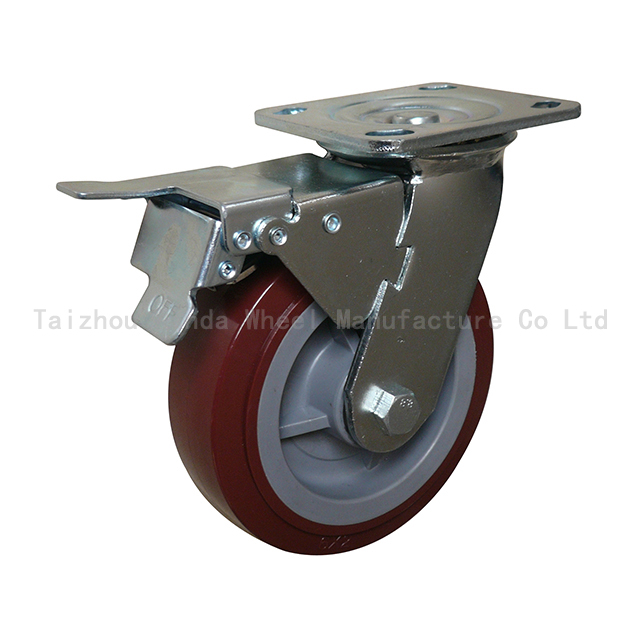

640x640 PP on TPU万向直刹轮 600PS-150050R-93-DUA 水印

Picture may differ from original product

Drawing-6x2 PU on Iron Swivel Casters

Casters Structure & Mounting

Drawing-6x2 PU on Iron Swivel Caster

Casters Structure & Mounting

Optional type and size as below:
Swivel caster

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PS-100050R-93 4 226 100 50 Roller
Bearing
31 141 115x100 92x75/75x67 11
600PS-125050R-93 5 272 125 50 Roller
Bearing
41 163 115x100 92x75/75x67 11
600PS-150050R-93 6 360 150 50 Roller
Bearing
44 189 115X100 92x75/75x67 11
600PS-200050R-93 8 410 200 50 Roller
Bearing
44 239 115x100 92x75/75x67 11

Fixed Caster

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)

600PF-100050R-93

4 226 100 50 Roller
Bearing
/ 141 115x100 92x75/75x67 11
600PF-125050R-93 5 272 125 50 Roller
Bearing
/ 163 115x100 92x75/75x67 11
600PF-150050R-93 6 360 150 50 Roller
Bearing
/ 189 115X100 92x75/75x67 11
600PF-200050R-93 8 410 200 50 Roller
Bearing
/ 239 115x100 92x75/75x67 11

Swivel Caster with tread brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PS-100050R-93-STL 4 226 100 50 Roller
Bearing
31 141 115x100 92x75/75x67 11
600PS-125050R-93-STL 5 272 125 50 Roller
Bearing
41 163 115x100 92x75/75x67 11
600PS-150050R-93-STL 6 360 150 50 Roller
Bearing
44 189 115X100 92x75/75x67 11
600PS-200050R-93-STL 8 410 200 50 Roller
Bearing
44 239 115x100 92x75/75x67 11

Fixed Caster with side brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PF-100050R-93-STL 4 226 100 50 Roller
Bearing
/ 141 115x100 92x75/75x67 11
600PF-125050R-93-STL 5 272 125 50 Roller
Bearing
/ 163 115x100 92x75/75x67 11
600PF-150050R-93-STL 6 360 150 50 Roller
Bearing
/ 189 115X100 92x75/75x67 11
600PF-200050R-93-STL 8 410 200 50 Roller
Bearing
/ 239 115x100 92x75/75x67 11

Swivel Caster with tread brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
600PS-100050R-13-DUA 4 226 100 50 Roller
Bearing
31 141 115x100 92x75/75x67 11
600PS-125050R-13-DUA 5 272 125 50 Roller
Bearing
41 163 115x100 92x75/75x67 11
600PS-150050R-13-DUA 6 360 150 50 Roller
Bearing
44 189 115X100 92x75/75x67 11
600PS-200050R-13-DUA 8 410 200 50 Roller
Bearing
44 239 115x100 92x75/75x67 11
