600 Series PU on PP Wheel Caster

Wanda Industrial PU on PP Wheels also known as TPU Caster Wheels are injection molded from a blend of polyolefin/polypropylene polymers forming a one piece design that is solid and will not de-laminate. Polyolefin Wheels are great for wet and corrosive environments while providing a high impact resistant wheel. Polyolefin wheels are more economical compared to a Phenolic Wheel or a Steel Wheel. These wheels are non-marking and light in weight. Black is the standard color on plastic wheels.
Availability:
Quantity:
  • 600**-******R-53
Wheel
Dia.
D
Tread
Width
W
Load
Cap.
(kg)
Bearing
Options
Swivel
Radius
E
Overall
Height
H
Plate
Size
XxY
Setting
Pitch
X’xY’
Hole
Dia.
P
100 50 260 Roller 31 141 115x100 83x71 11
125 50 320 Roller 41 163 115x100 83x71 11
150 50 350 Roller 44 189 115x100 83x71 11
200 50 400 Roller 44 239 115x100 83x71 11
*All dimention are “mm”.




Wheel

Dia.

D

Swivel Caster

Model No.

Fixed Caster

Model No.

Swivel

With Total Lock

Model No.

Swivel

With Side Brake

Model No.

Fixed

With Side Brake

Model No.

100

600PS-100050R-53

600PF-100050R-53

600PS-100050R-53-DUC

600PS-100050R-53-STC

600PF-100050R-53-STC

125

600PS-125050R-53

600PF-125050R-53

600PS-125050R-53-DUC

600PS-125050R-53-STC

600PF-125050R-53-STC

150

600PS-150050R-53

600PF-150050R-53

600PS-150050R-53-DUC

600PS-150050R-53-STC

600PF-150050R-53-STC

200

600PS-200050R-53

600PF-200050R-53

600PS-200050R-53-DUC

600PS-200050R-53-STC

600PF-200050R-53-STC



Advantages at a glance
Roll performance
Movement noise
Attrition
Corrosion resistance


Dimensions

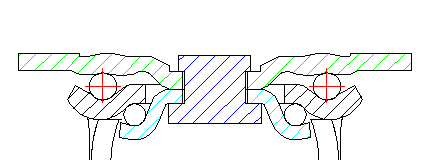

Stucture & Mounting
