Medium Duty 130mm Japan Swivel Polyurethane with total lock Caster ock for table

130mm Japan Style 4JA Series polyurethane with total lock casters, meet JIS industrial casters standard. welded disk polyurethane caster wheels offer designers and attractive alternative for food serivece equipment, medical products, point-of-purchase displays and other institutional applications. these caster wheels feature a green polyurethane tread permanently compressed between two steel discs which are welded together. welded disc polyurethane wheels are quiet rolling and offer excellent floor protection and dynamic load up to 250kg each.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • 4JAPS-130035DB-83JL-SU

  • WANDA

Overview

4JA Series 130mm Japan Style 5 inch polyurethane casterswith total lock , meet JIS industrial casters standard. welded disk polyurethane caster wheels offer designers and attractive alternative for food serivece equipment, medical products, point-of-purchase displays and other institutional applications. these caster wheels feature a  green polyurethane tread permanently compressed between two steel discs which are welded together. welded disc polyurethane wheels are quiet rolling and offer excellent floor protection.

Product Description

Technical Date

Wheel Diameter

130 mm

Width of Tread

35 mm

Wheel Color

Green

Wheel Material

Polyurethane

Fastening Type

Top Plate

Surface Finish

Bright Zinc

Rotation Type:

Swivel with Total Lock Caster

Load Capacity:

250 kg

Overall Height:

177 mm

Wheel Bearing

Flange Ball Bearing

Plate Size

108x108 mm

Plate Hole Space

83x83/76.5x76.5 mm

Plate Hole Size

11 mm

Threaded Size

N/A

Stem Long

N/A

Place of Origin

China

Brand Name

Wanda

Usage

Wide Usage

Hardness of Tread

Shore A 95

Temperature Range

15 / + 50

Related Process

Molding, Stamping, Machining, Welding, Assembling, Packing


Advantages at a glance

Roll performance

l

l

l

l

¡


Movement noise

l

l

l

l

l


Attrition

l

l

l

l

l


Corrosion resistance

l

l

l

l

¡

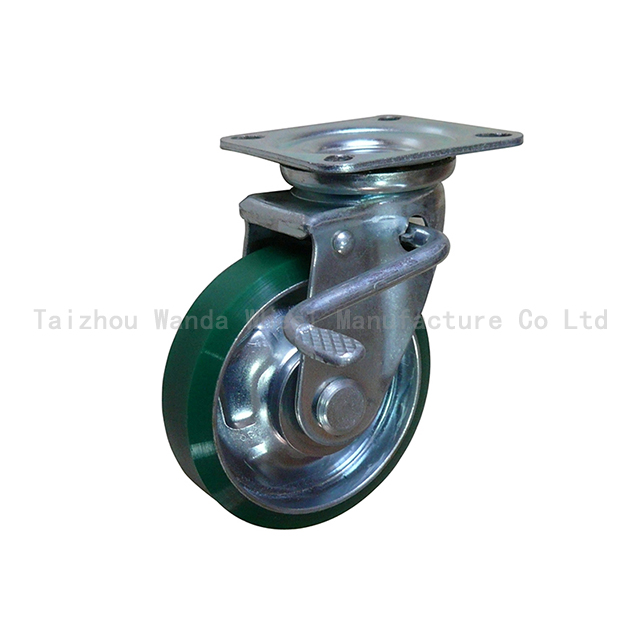

640x640 UJB-130 水印

Picture may differ from original product

lQLPKGXg4xj0vNHNAdbNAdawdy0cv2kXHhsF4d5mF9S-AA_470_470

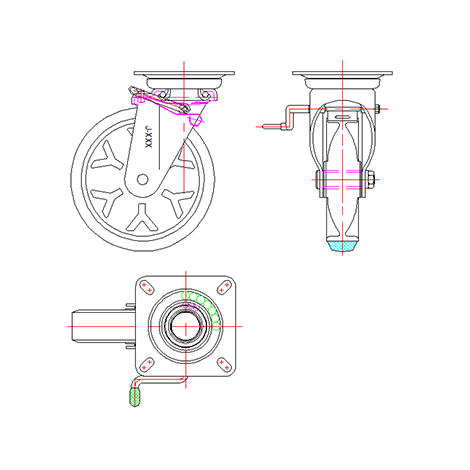

Casters Stucture & Mounting

Japan 75mm Swivel Caster Stucture

Casters Stucture & Mounting

Production Process

Casters Production Process

Strictly Quality Inspection
Strictly Quality Inspection


Certifications

Certifications
