| Quantity: | |
|---|---|
4JAPS-150038DB-83JL
WANDA
Overview
4JA Series 150mm Japan Style 6 inch polyurethane casters, meet JIS industrial casters standard. welded disk polyurethane caster wheels offer designers and attractive alternative for food serivece equipment, medical products, point-of-purchase displays and other institutional applications. these caster wheels feature a green polyurethane tread permanently compressed between two steel discs which are welded together. welded disc polyurethane wheels are quiet rolling and offer excellent floor protection.
Technical Date | |
Wheel Diameter | 150 mm |
Width of Tread | 38 mm |
Wheel Color | Green |
Wheel Material | Polyurethane |
Fastening Type | Top Plate |
Surface Finish | Bright Zinc |
Rotation Type: | Swivel Caster |
Load Capacity: | 300 kg |
Overall Height: | 198 mm |
Wheel Bearing | Flange Ball Bearing |
Plate Size | 120x120 mm |
Plate Hole Space | 93x93/87x87 mm |
Plate Hole Size | 11 mm |
Threaded Size | N/A |
Stem Long | N/A |
Place of Origin | China |
Brand Name | Wanda |
Usage | Wide Usage |
Hardness of Tread | Shore A 95 |
Temperature Range | - 15 / + 50 ℃ |
Related Process | Molding, Stamping, Machining, Welding, Assembling, Packing |
Advantages at a glance | ||||||
Roll performance | l | l | l | l | ¡ | |
Movement noise | l | l | l | l | l | |
Attrition | l | l | l | l | l | |
Corrosion resistance | l | l | l | l | ¡ | |

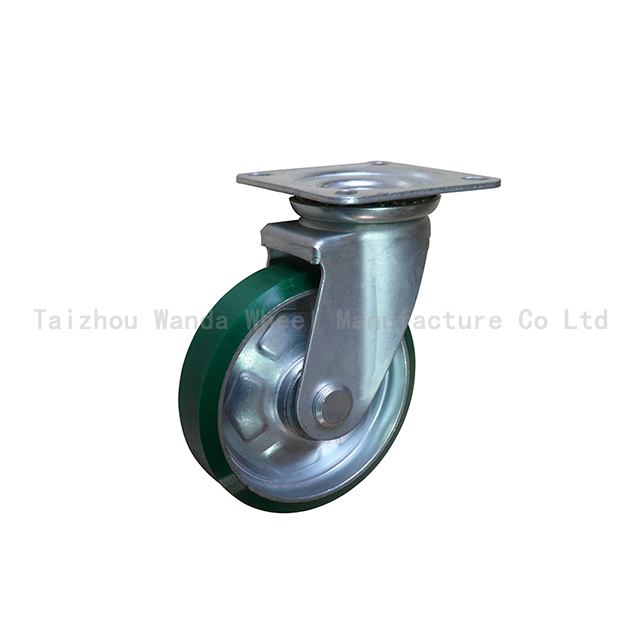

Picture may differ from original product

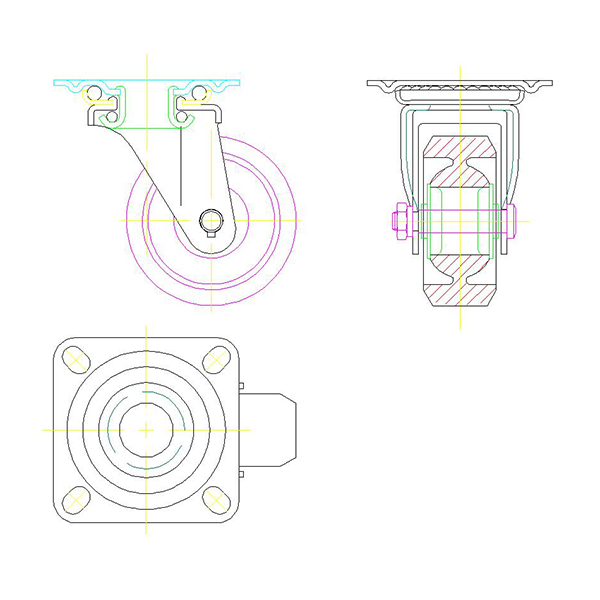

Casters Stucture & Mounting
Casters Stucture & Mounting
