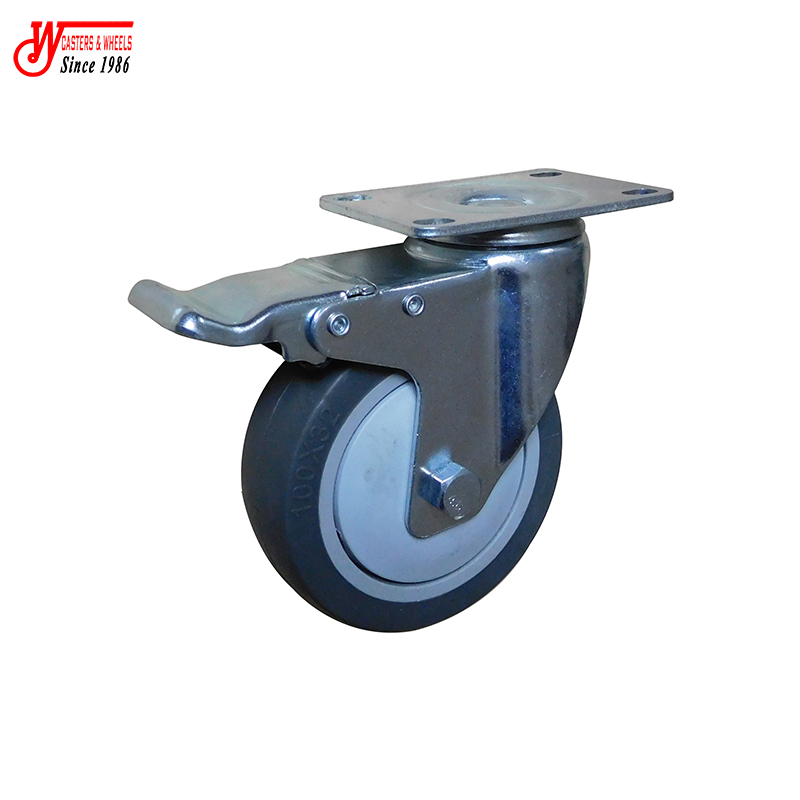

Medium Duty 4x1.25 Inch Outdoor TPR Rubber Swivel Caster with Double Brake

4"x1.25" inch (100mm) Thermo-Rubber (TPR) wheel casters with total lock, provide excellent floor protection, are resistant to most chemical/oils, and help reduce vibration by absorbing shock. Standard precision ball bearings provide easy and quiet rolling. Full thread guards prevent debris from entangling the axles. Durometer: 75A (±5) Temp Range: -40°F to +180°F
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • 310PS-100032B-52P

  • WANDA

Overview

4"x1.25" inch (100mm) Thermo-Rubber (TPR) wheel casters with total lock, provide excellent floor protection, are resistant to most chemical/oils, and help reduce vibration by absorbing shock. Standard precision ball bearings provide easy and quiet rolling. Full thread guards prevent debris from entangling the axles. Durometer: 75A (±5) Temp Range: -40°F to +180°F

Product Description

Technical Date

Wheel Diameter

100 mm

Width of Tread

32 mm

Wheel Color

Grey

Wheel Material

Thermo-Rubber (TPR)

Fastening Type

Top Plate

Surface Finish

Bright Blue White Zinc

Rotation Type:

Swivel Caster With brake

Load Capacity:

100 kg

Overall Height:

128 mm

Wheel Bearing

Ball Bearing

Plate Size

94x62 mm

Plate Hole Space

71x45/78x45 mm

Plate Hole Size

mm

Threaded Size

N/A

Stem Long

N/A

Place of Origin

China

Brand Name

Wanda

Usage

Wide Usage

Hardness of Tread

Shore A 75

Temperature Range

- 15 / + 60

Related Process

Molding, Stamping, Machining, Welding, Assembling, Packing


Advantages at a glance

Roll performance

l

l

l

l

¡


Movement noise

l

l

l

l

l


Attrition

l

l

l

l

¡


Corrosion resistance

l

l

l

l

¡

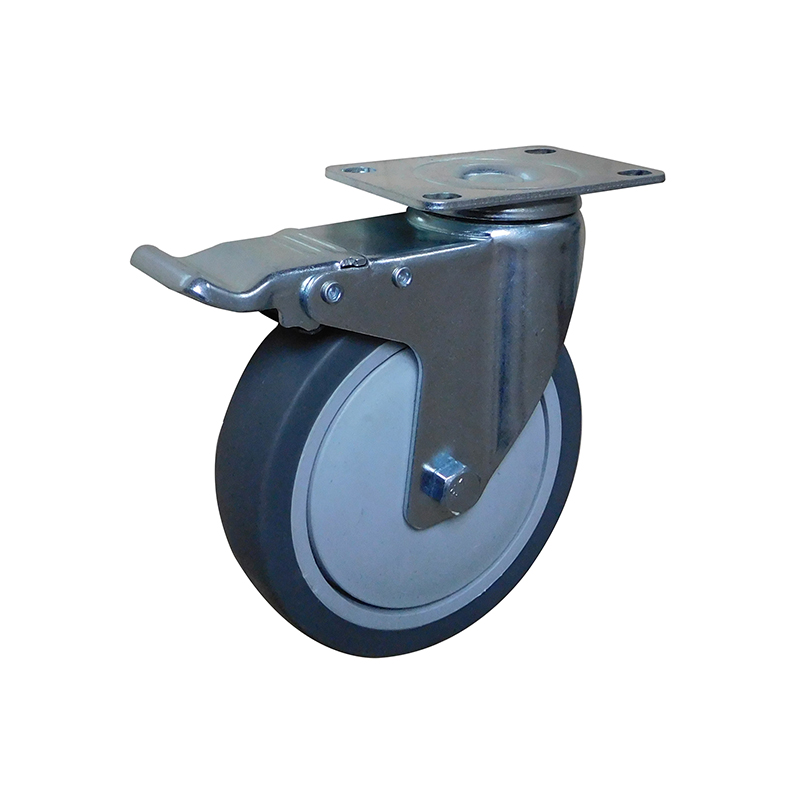

Picture-5 inch TPR Swivel Caster with total lock

Picture may differ from original product

Drawing-5x1.25 TPR Swivel Caster with Double Lock

Casters Structure & Mounting

Drawing-Medium Duty Swivel Caster Head

Casters Structure & Mounting

Optional type and size as below:
Swivel caster

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
310PS-075032-52PE 3 90 200 32 Ball
Bearing
32 104 94x62 71x45/78x45 8
310PS-100032B-52PE 4 100 250 32 Ball
Bearing
32 128 94x62 71x45/78x45 8
310PS-125032B-52PE 5 125 300 32 Ball
Bearing
32 152 94x62 71x45/78x45 8

Fixed Caster

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
310PF-075032-52PE 3 90 200 32 Ball
Bearing
/ 104 95x65 71x45/78x45 8
310PF-100032B-52PE 4 100 250 32 Ball
Bearing
/ 128 95x65 71x45/78x45 8
310PF-125032B-52PE 5 125 300 32 Ball
Bearing
/ 152 95x65 71x45/78x45 8

Swivel Caster with tread brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
310PS-075032B-52PE-DUC 3 90 200 32 Ball
Bearing
32 104 94x62 71x45/78x45 8
310PS-100032B-52PE-DUC 4 100 250 32 Ball
Bearing
32 128 94x62 71x45/78x45 8
310PS-125032B-52PE-DUC 5 125 300 32 Ball
Bearing
32 152 94x62 71x45/78x45 8


Production Process

Casters Production Process

Strictly Quality Inspection
Strictly Quality Inspection


Certifications

Certifications
