Overview

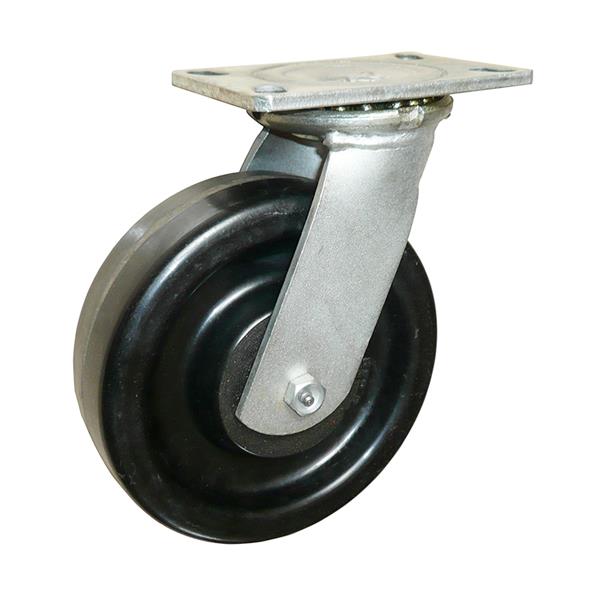

H series 10x2.5 phenolic caster wheels are made from macerated canvas mixed with phenolic resin, and molded under high pressure and temperature. Its hardness is comparable to polished maple flooring. phenolic caster wheels are recommended for smooth concrete and can be used for storage(standing) loads without permanent set. come with straight roller bearing with drilled hardened steel spanner bushing. and each caster up to 750kg dynamic loading capacity. Wanda Casters since 1986 years, 30+ years' experience and monthly productivity over 50 containers
Technical Date | |
Wheel Diameter | 250 mm |
Width of Tread | 64 mm |
Wheel Color | Black |
Wheel Material | Phenolic Resin |
Fastening Type | Top Plate |
Surface Finish | Bright Zinc |
Rotation Type: | Swivel Caster |
Load Capacity: | 750 kg |
Overall Height: | 292 mm |
Wheel Bearing | Roller Bearing |
Plate Size | 160x114 mm |
Plate Hole Space | 133x85/125x62 mm |
Plate Hole Size | 14 mm |
Threaded Size | N/A |
Stem Long | N/A |
Place of Origin | China |
Brand Name | Wanda |
Usage | Wide Usage |
Hardness of Tread | Shore D 70 |
Temperature Range | - 25 / + 200 ℃ |
Related Process | Molding, Stamping, Machining, Welding, Assembling, Packing |
Advantages at a glance | ||||||
Roll performance | l | l | l | l | l | |
Movement noise | l | l | ¡ | ¡ | ¡ | |
Attrition | l | l | l | l | l | |
Corrosion resistance | l | l | l | l | l | |
Picture may differ from original product

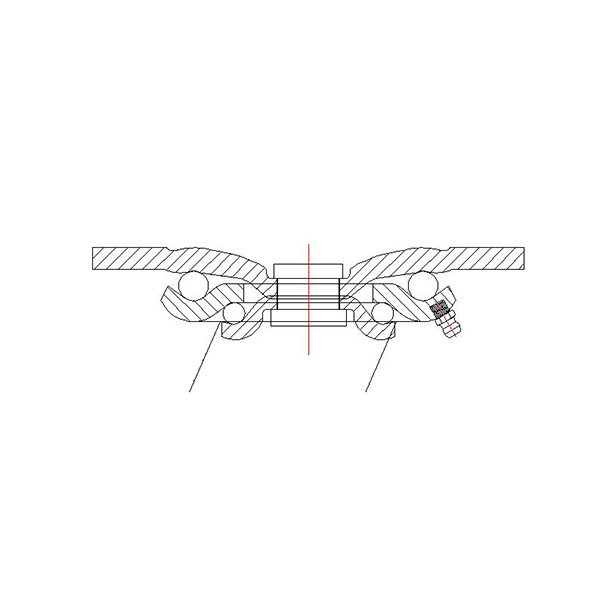

Casters Structure & Mounting
Casters Structure & Mounting
