Home » Casters » Medium Duty Casters » Soft 100mm 4"x1.25" Industrial Elastic Rubber Rigid Caster

Soft 100mm 4"x1.25" Industrial Elastic Rubber Rigid Caster

This 4"x1.25" elastic rubber rigid caster widely used in industrial area, mostly as trolley wheel. Non marking tread. The softness of this wheel and high quality roller bearing allow it for easy rolling and noise reduction. This series available in fixed, swivel design,braking options, and size from 75mm 100mm 125mm.
Availability:
Quantity:
  • 310PF-100035B-42S
  • WANDA

Overview

Elastic Rubber 310 Series medium duty plate rigid caster are designed for hand trolley, tool car, medium heavy equipment, top plate fitting, bright zinc plating, double raceway, excellent for medium heavy duty platform trucks and factory use. Up to 150kgs load capacity.

Product Description

Technical Date

Wheel Diameter

100 mm

Width of Tread

35 mm

Wheel Color

Blue

Wheel Material

Elastic Rubber

Fastening Type

Top Plate

Surface Finish

Bright Zinc

Rotation Type:

Rigid Caster

Load Capacity:

130 kg

Overall Height:

155 mm

Wheel Bearing

Ball Bearing

Plate Size

92x60 mm

Plate Hole Space

(70-76.5)x44 mm

Plate Hole Size

mm

Threaded Size

N/A

Stem Long

N/A

Place of Origin

China

Brand Name

Wanda

Usage

Wide Usage

Hardness of Tread

Shore A 80

Temperature Range

- 15 / + 60

Related Process

Molding, Stamping, Machining, Welding, Assembling, Packing


Advantages at a glance

Roll performance

l

l

l

l

¡


Movement noise

l

l

l

l

l


Attrition

l

l

l

l

l


Corrosion resistance

l

l

l

l

¡

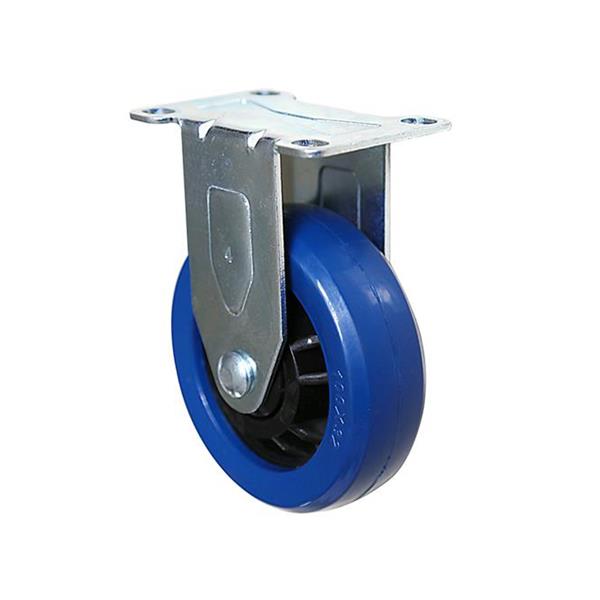

5 inch Blue Rubber on Nylon Core Fixed Caster

Picture may differ from original product

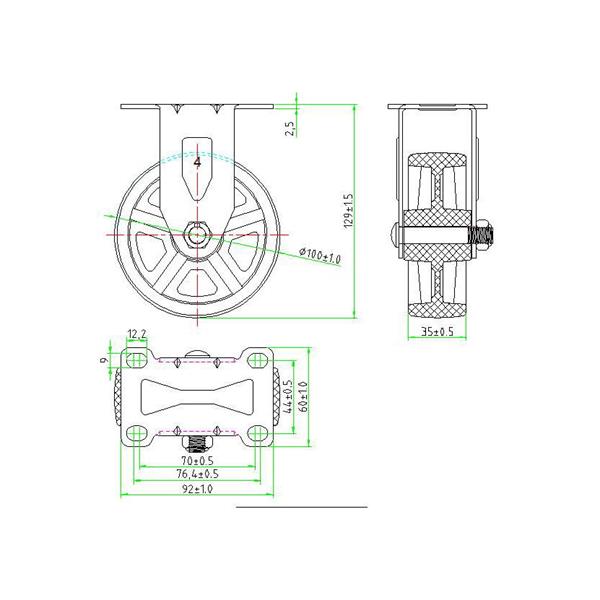

Drawing-4x1.25 Rubber on Nylon Fixed Caster

Casters Stucture & Mounting



Optional type and size as below:
Swivel caster

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
310PS-075032B-42S 3 110 75 35 Ball
Bearing
35 106 92x60 70x44.5/76.5x44.5 9
310PS-100032B-42S 4 130 100 35 Ball
Bearing
38 129 94x62 70x44.5/76.5x44.5 9
310PS-125032B-42S 5 150 125 35 Ball
Bearing
38 155 94x62 70x44.5/76.5x44.5 9

Fixed Caster

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
310PF-075032B-42S 3 110 75 35 Ball
Bearing
/ 106 92x60 70x44.5/76.5x44.5 9
310PF-100032B-42S 4 130 100 35 Ball
Bearing
/ 129 94x62 70x44.5/76.5x44.5 9
310PF-125032B-42S 5 150 125 35 Ball
Bearing
/ 155 94x62 70x44.5/76.5x44.5 9

Swivel Caster with tread brake

ITEM NO. SPEC
(INCH)
CAPACITY
(KG)
DIA
(MM)
WIDTH
(MM)
WHEEL
BEARING
SWIVEL
RADIUS
(MM)
OVERALL
HEIGHT
(MM)
TOP PLATE
(MM)
HOLE CENTERS
(MM)
PLATE HOLE
(MM)
310PS-075032B-42S-DUC 3 110 75 35 Ball
Bearing
35 106 92x60 70x44.5/76.5x44.5 9
310PS-100032B-42S-DUC 4 130 100 35 Ball
Bearing
38 129 94x62 70x44.5/76.5x44.5 9
310PS-125032B-42S-DUC 5 150 125 35 Ball
Bearing
38 155 94x62 70x44.5/76.5x44.5 9


Production Process

Casters Production Process

Strictly Quality Inspection

Strictly Quality Inspection


Certifications


Certifications
