Straight Roller Bearing

The roller bearing is capable of carrying a greater load than the same size diameter ball bearing. It has a split outer race shell into which the roller assembly is inserted. Standard Wanda roller assembly features hardened steel rollers enclosed in a thermoplastic case on 1-1/2″ and 2″ tread width wheels. Metal cage roller bearings are available and are standard on wheels with tread widths of 2-1/2″ and larger. Combination seal/thrust retainer washers protect the bearing from dirt, water, and chemicals. They also help absorb thrust friction.
Availability:
Quantity:
  • BBN-WD*****

Overview

The roller bearing is capable of carrying a greater load than the same size diameter ball bearing. It has a split outer race shell into which the roller assembly is inserted. Standard Wanda roller assembly features hardened steel rollers enclosed in a thermoplastic case on 1-1/2″ and 2″ tread width wheels. Metal cage roller bearings are available and are standard on wheels with tread widths of 2-1/2″ and larger. Combination seal/thrust retainer washers protect the bearing from dirt, water, and chemicals. They also help absorb thrust friction.

Product Description

Bushing Inside Diameter

 Bushing Outside Diameter

Bushing Length

Model No.

19.05

28.575

34.925

BBN-WD93322

19.05

28.575

47.6

BBN-WD93330

19.05

28.575

63.5

BBN-WD93340

25.4

44.45

76.2

BBN-WD96548

*All dimention are mm.


Advantages at a glance

Roll performance

l

l

l

l

l


Movement noise

l

l

l

l

¡


Attrition

l

l

l

l

l


Corrosion resistance

l

l

l

l

l



Straight Roller Bearing

Picture may differ from original product

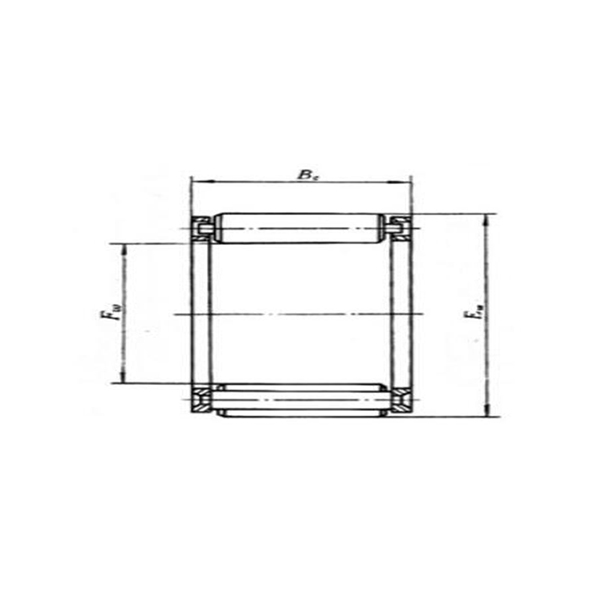

Roller Bearing Drawing

Casters Structure & Mounting


Production Process

Casters Production Process

Strictly Quality Inspection
Strictly Quality Inspection


Certifications

Certifications
