125mm Outdoor Good Quality Rubber Fixed Caster

Medium heavy duty rubber caster are designed for hand trolley, tool car, medium heavy equipment, top plate fitting, bright zinc plating, double raceway, excellent for medium heavy duty platform trucks and factory use. Up to 200kgs load capacity.
Availability:
Quantity:
  • 310PF-125035P-02E
  • WANDA

Overview

Medium heavy duty elastic rubber caster, 310 Series are designed for hand trolley, tool car, medium heavy equipment, top plate fitting, bright zinc plating, double raceway, excellent for medium heavy duty platform trucks and factory use. Up to 150kgs load capacity.

Product Description

Technical Date

Wheel Diameter

125 mm

Width of Tread

32 mm

Wheel Color

Blue

Wheel Material

Elastic Rubber

Fastening Type

Top Plate

Surface Finish

Bright Zinc

Rotation Type

Fixed Caster

Load Capacity:

125 kg

Overall Height:

155 mm

Wheel Bearing

Ball Bearing

Plate Size

92x60 mm

Plate Hole Space

(70-76.5)x44 mm

Plate Hole Size

mm

Threaded Size

N/A

Stem Long

N/A

Place of Origin

China

Brand Name

Wanda

Usage

Wide Usage

Hardness of Tread

Shore A 80

Temperature Range

- 15 / + 6

Related Process

Molding, Stamping, Machining, Welding, Assembling, Packing


Advantages at a glance

Roll performance

l

l

l

l

¡


Movement noise

l

l

l

l

l


Attrition

l

l

l

l

l


Corrosion resistance

l

l

l

l

¡

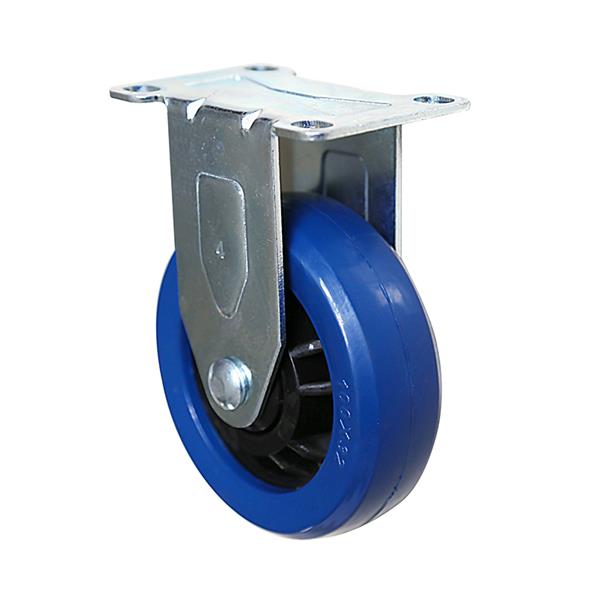

5 inch Blue Rubber on Nylon Core Fixed Caster

Picture may differ from original product

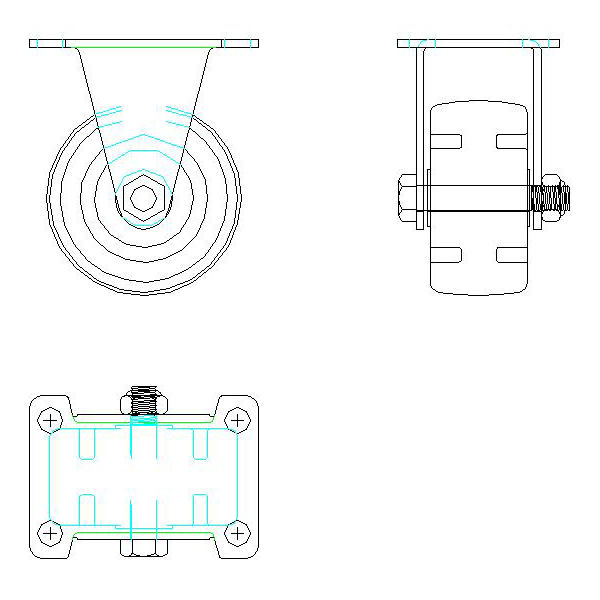

elastic rubber fixed caster drawing

Casters Stucture & Mounting



Production Process

Casters Production Process

Strictly Quality Inspection
Strictly Quality Inspection
Certifications

Certifications
