4JAPF-130038DB-82JA-ST
WANDA
Overview

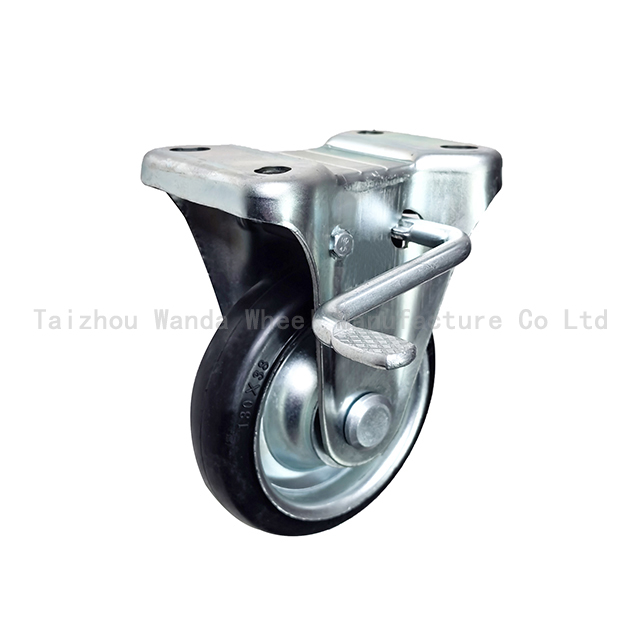

4JA Series 130mm Japan Style 5 inch rubber with brake casters, meet JIS industrial casters standard. welded disk rubber caster wheels offer designers and attractive alternative for food serivece equipment, medical products, point-of-purchase displays and other institutional applications. these caster wheels feature a black rubber tread permanently compressed between two steel discs which are welded together. welded disc rubber wheels are quiet rolling and offer excellent floor protection.
Technical Date | |
Wheel Diameter | 130 mm |
Width of Tread | 38 mm |
Wheel Color | Black |
Wheel Material | Elastic Rubber |
Fastening Type | Top Plate |
Surface Finish | Bright Zinc |
Rotation Type: | Rigid with tbrake Caster |
Load Capacity: | 180 kg |
Overall Height: | 177 mm |
Wheel Bearing | Flange Ball Bearing |
Plate Size | 137x93 mm |
Plate Hole Space | 93x52/103x58 mm |
Plate Hole Size | 11 mm |
Threaded Size | N/A |
Stem Long | N/A |
Place of Origin | China |
Brand Name | Wanda |
Usage | Wide Usage |
Hardness of Tread | Shore A 70 |
Temperature Range | - 20 / + 80 ℃ |
Related Process | Molding, Stamping, Machining, Welding, Assembling, Packing |
Advantages at a glance | ||||||
Roll performance | l | l | l | l | ¡ | |
Movement noise | l | l | l | l | l | |
Attrition | l | l | l | l | l | |
Corrosion resistance | l | l | l | l | ¡ |
Picture may differ from original product
Casters Stucture & Mounting
Casters Stucture & Mounting
Overview
4JA Series 130mm Japan Style 5 inch rubber with brake casters, meet JIS industrial casters standard. welded disk rubber caster wheels offer designers and attractive alternative for food serivece equipment, medical products, point-of-purchase displays and other institutional applications. these caster wheels feature a black rubber tread permanently compressed between two steel discs which are welded together. welded disc rubber wheels are quiet rolling and offer excellent floor protection.
Technical Date | |
Wheel Diameter | 130 mm |
Width of Tread | 38 mm |
Wheel Color | Black |
Wheel Material | Elastic Rubber |
Fastening Type | Top Plate |
Surface Finish | Bright Zinc |
Rotation Type: | Rigid with tbrake Caster |
Load Capacity: | 180 kg |
Overall Height: | 177 mm |
Wheel Bearing | Flange Ball Bearing |
Plate Size | 137x93 mm |
Plate Hole Space | 93x52/103x58 mm |
Plate Hole Size | 11 mm |
Threaded Size | N/A |
Stem Long | N/A |
Place of Origin | China |
Brand Name | Wanda |
Usage | Wide Usage |
Hardness of Tread | Shore A 70 |
Temperature Range | - 20 / + 80 ℃ |
Related Process | Molding, Stamping, Machining, Welding, Assembling, Packing |
Advantages at a glance | ||||||
Roll performance | l | l | l | l | ¡ | |
Movement noise | l | l | l | l | l | |
Attrition | l | l | l | l | l | |
Corrosion resistance | l | l | l | l | ¡ |
Picture may differ from original product
Casters Stucture & Mounting
Casters Stucture & Mounting
